Java Games: Flashcards, matching, concentration, and word search. |
 |
|
| A | B |
|---|
| resistor | limits current flow |
| capacitor | acts as a temporary battery |
| transistor | controls large amount of electricity with a small amount |
| Ohms Law | Relation between volts, amps and ohms |
| voltage | electrical pressure or force |
| current | Flow of electricity |
| resistance | opposition to current flow |
| 220 ohms +/- 5% | red, red, brown, gold |
| 1000 ohms +/- 5% | brown, black, red, gold |
| 120 ohms +/- 5% | brown, red, brown, gold |
| 3300 ohms +/- 5% | orange, orange, red, gold |
| 6 volts | Find voltage with 12 ohms, 1/2 amps |
| 133 ohms | find resistance with 0.09 amps, 12 volts |
| 0.36 amps | Find resistance with 120 volts and 330 ohms |
| .027 amps | Find resistance with 9 volts and 330 ohms |
| conductor | One of 3 parts of a circuit |
| load | One of 3 parts of a circuit |
| power source | One of 3 parts of a circuit |

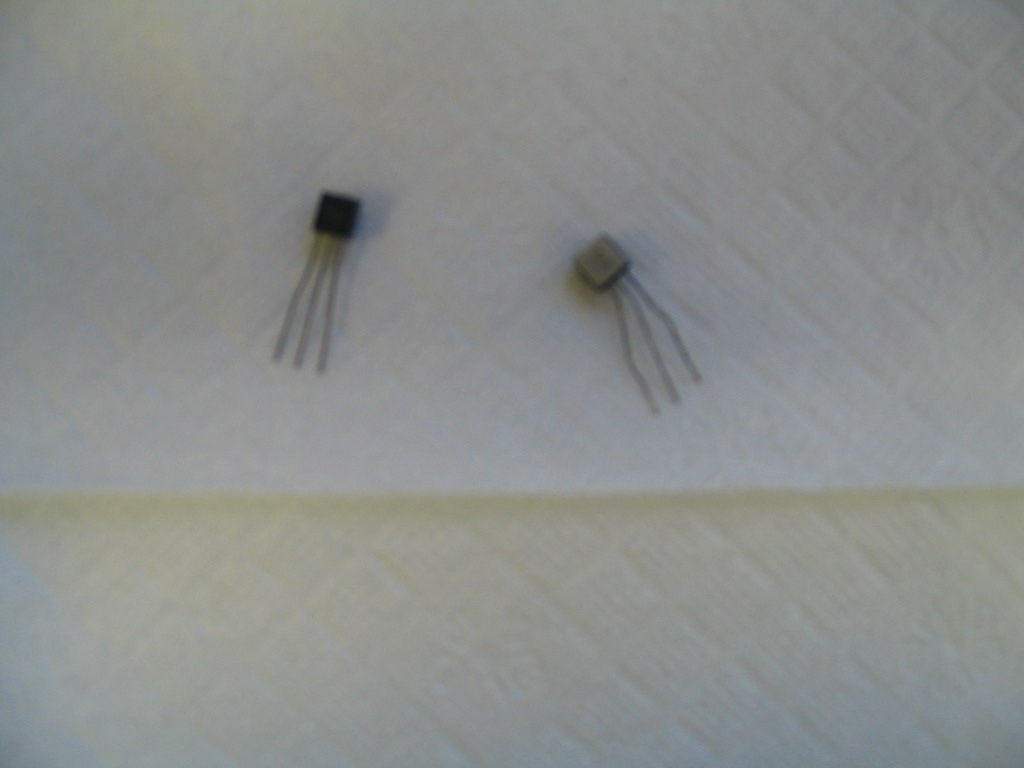

| transisiotr |  |

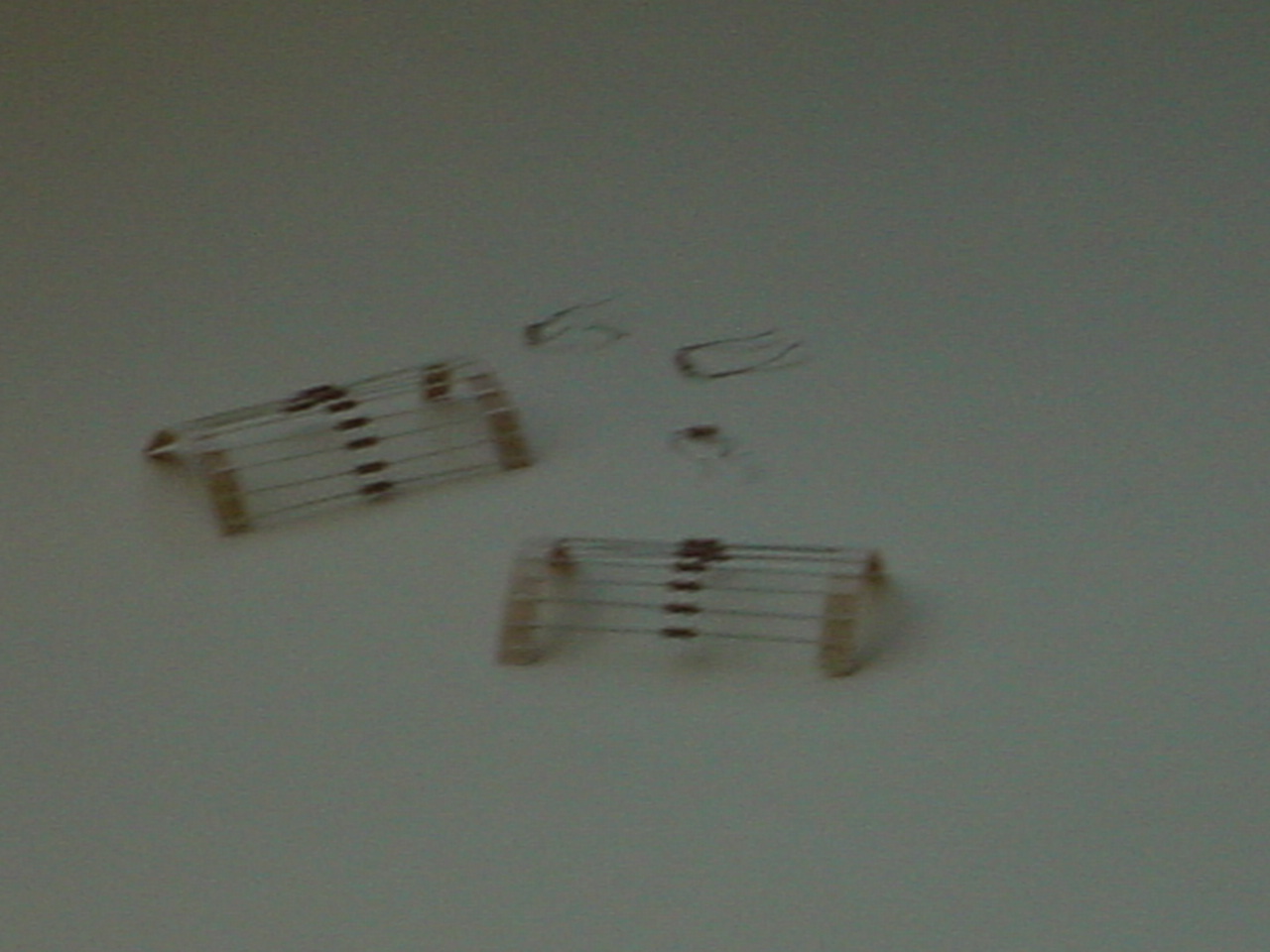

| resistor |  |

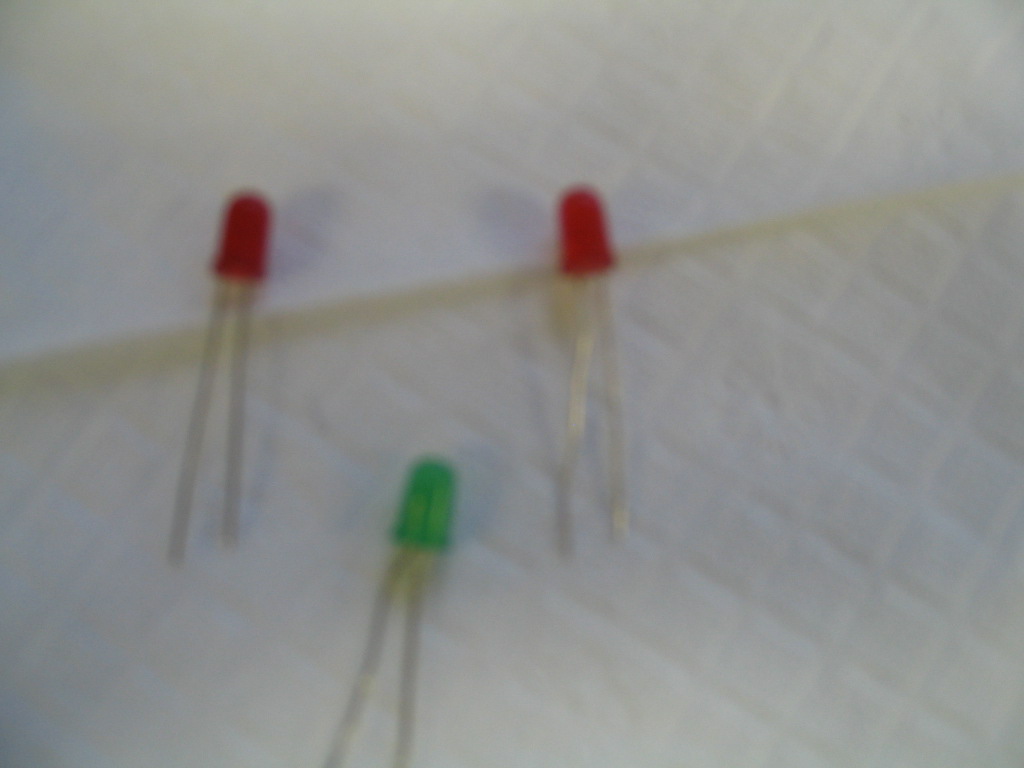

| Light Emitting Diode |  |

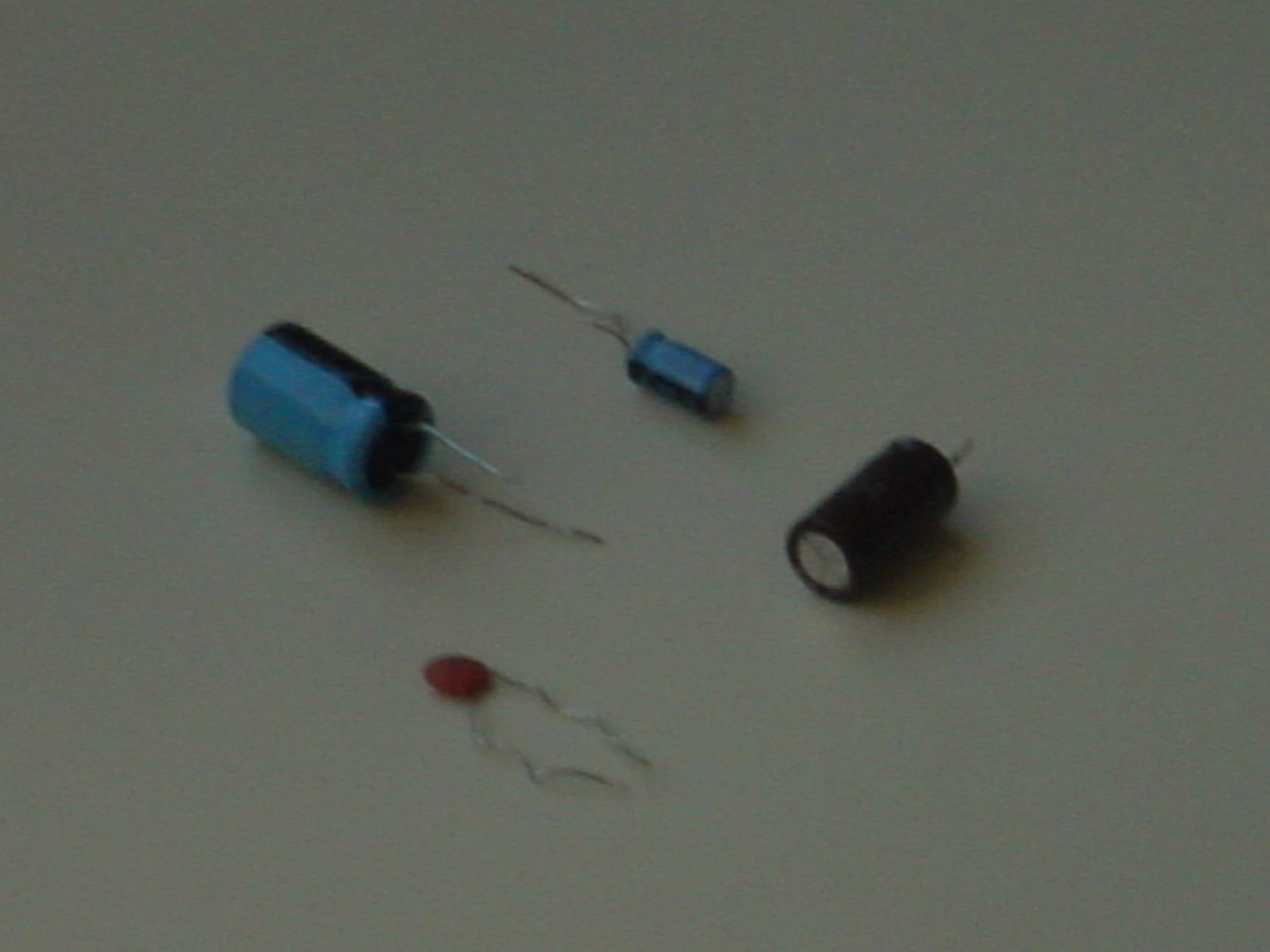

| capacitor |  |

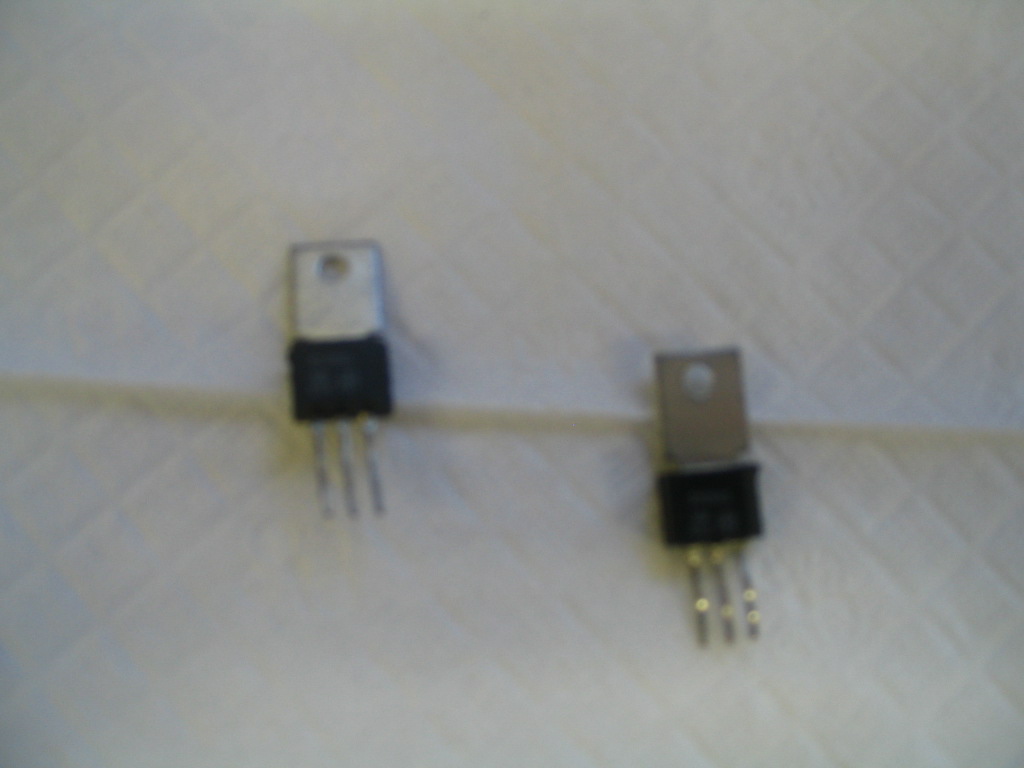

| Silicon controller Rectifier |  |
|
|
|
|
|
