D205.02 Basic Roof Design Activity
Explain concepts of roof construction. (All VoCAT's questions not included)
|
| A | B |
|---|

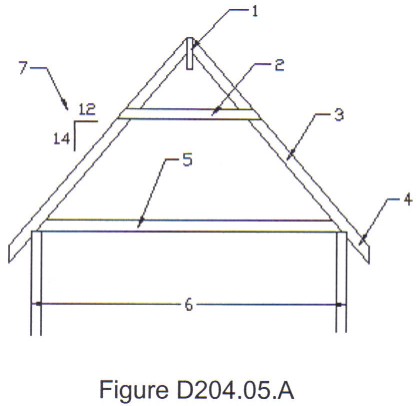

Item #2 is?,  | Collar beam |
| Item #4 is?, | Rafter tail |
| Item #7 is?, | Pitch symbol |
What is purpose of item #2?,  | Hold the rafters tight against the ridge. |

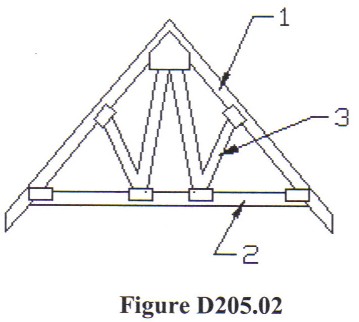

| Item #1 is:, | Top chord |
| Item #2 is:, | Ceiling joist |
| Item #3 is:, | Web |
|
|
|
|
|
