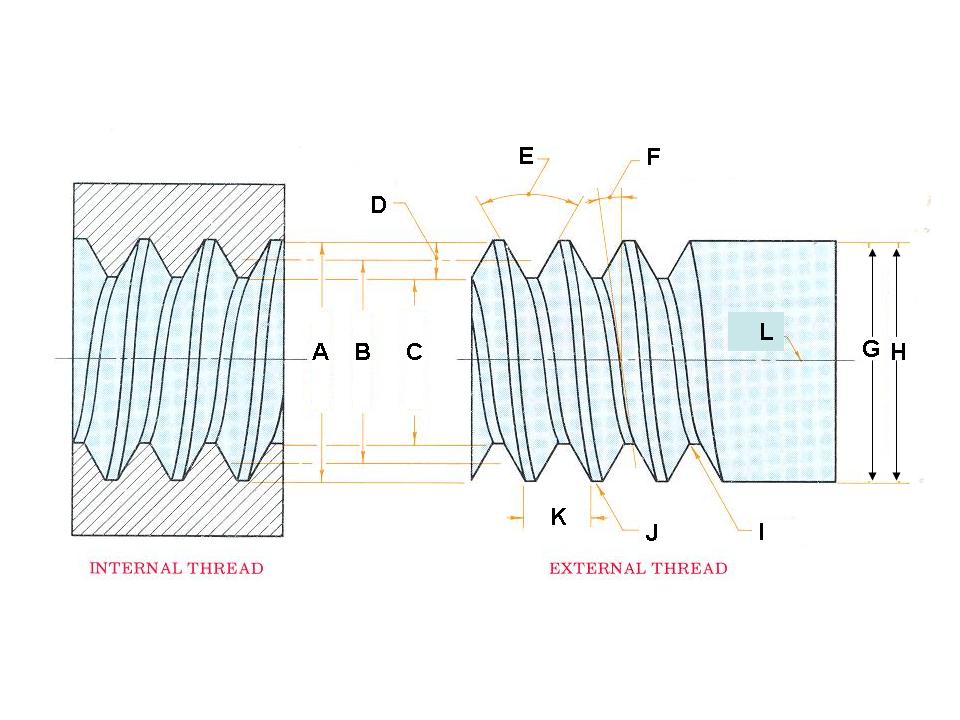

Screw Thread Terms
Chapter 10 from the Mechanical Drawing textbook.
|
| A | B |
|---|
A,  | Major Diameter |
| B, | Pitch Diameter |
| C, | Minor Diameter |
| D, | Depth of Thread |
| E, | Angle of Thread |
| F, | Helix Angle |
| G, | Diameter of Bolt or Screw |
| H, | Nominal Diameter |
| I, | Root |
| J, | Crest |
| K, | Pitch |
| L, | Axis |
|
|
|
|
|
