| A | B |
|---|
Instrument Name,  | Attitude Indicator |
Instrument Name,  | Heading Indicator |
Instrument Name,  | Turn Coordinator |
Instrument Name,  | Airspeed Indicator |
Instrument Name,  | Vertical Speed Indicator |
Instrument Name,  | Altimeter |

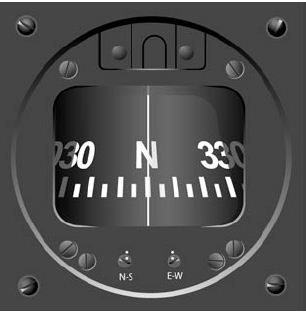

Instrument name,  | Magnetic Compass |
What's Happening?,  | Descending Right Bank |
| Pitot Tube | Measures Dynamic Pressure |
| Static Source | Measures Surrounding Pressure |
What's Happening,  | Skidding Turn |
What's Happening?,  | Slipping Turn |
| IAS | Indicated Airspeed |
| TAS | True Airspeed |

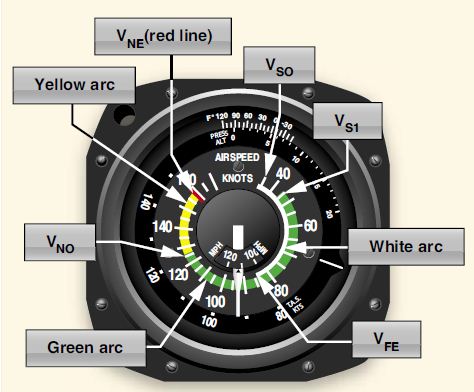

| White Arc | Flap Operating Range |
| Green Arc | Normal Operating Range |
| VNE | Never Exceed Speed - Red Line |
| Pitot Static Instruments | ASI VSI Altimeter |
| Gyro Instruments | HI AI Turn Coordinator |
| Indicated Altitude | Altimeter Reading |
| True Alititude | Distance Above Sea Level |
| Absolute Altitude | Distance Above Ground Level |
| Pressure Altitude | Altimeter Reading when set to 29.92 |
| Blocked Pitot Tube - Level | ASI decreases to zero |
| Blocked Pitot Tube - Climb | ASI increases |
| Blocked Pitot Tube - Descent | ASI decreases |
| Inclinometer | Liquid Filled Curved Tube and Ball |
| Standard Rate Turn | 3 Degrees/Second |
| Deviation | Electrical Local Compass Error |
| Compass Turn Error From North | Lag |
| Compass Turn Error from South | Lead |
| From High to Low or Hot to Cold | Look Out Below |
|
|
|
|
|
|
| |
