Drafting I - Section 3 Drawing Procedures
|
| A | B |
|---|

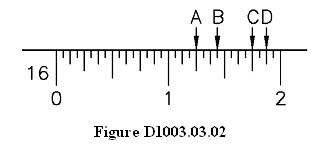

What is measurement "B"?,  | 1-7/16" |
| What is measurement "A"?, | 1-1/4" |
| What is measurement "D"?, | 1-7/8" |
| What is measurement "C"?, | 1-3/4" |
What is this instrument used for?,  | Drawing parallel lines |
What is line "C"?,  | Hidden Line |
| What is line "A"?, | Oblect/Visible line |
| What is line "D"?, | Center Line |
What is the correct measurement?,  | 3-5/8" |
What is the correct measurement?,  | 3 |
|
|
|
|
|
