| A | B |
|---|

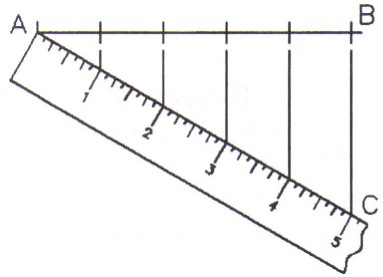

The GEOMETRIC CONSTRUCTION shows how to:,  | Divide a line into equal parts. |
To construct the hexagon to the exact dimension shown, you would:,  | Use the circumscribe method. |
The GEOMETRIC CONSTRUCTION shown is used to draw an Arc tangent to a/an:,  | Right angle. |
The GEOMETRIC CONSTRUCTION below shows how to bisect a/an:,  | Line. |
If the construction circle shown has a 1" radius, then the hexagon measures 2" across the:,  | Flats. |
The GEOMETRIC CONSTRUCTION shows how to:,  | Draw an isosceles triangle. |
The GEOMETRIC CONSTRUCTION shows how to:,  | Draw an equilateral triangle. |
To construct the hexagon to the exact dimension shown, you would:,  | Use the inscribe method. |

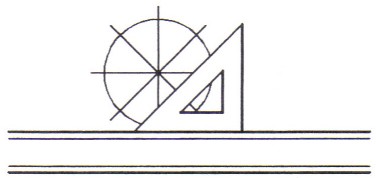

The drawing equipment is being used to construct a/an:,  | Octagon. |
The GEOMETRIC CONSTRUCTION shows how to:,  | Draw a scalene triangle. |

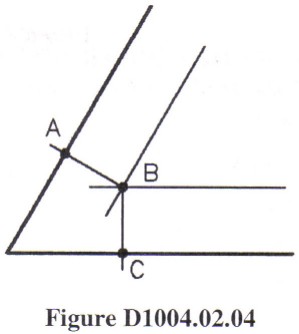

The GEOMETRIC CONSTRUCTION is used to draw an Arc tangent to a/an:,  | Obtuse angle. |
| In the GEOMETRIC CONSTRUCTION shown, distances AB and AC are equal to:, | A known radius. |
In the UNFINISHED GEOMETRIC CONSTRUCTION shown, the NEXT STEP is to:,  | Draw an arc with a radius of AB. |
| In the UNFINISHED GEOMETRIC CONSTRUCTION shown, the NEXT STEP is to:, | Draw an arc with a radius AB. |

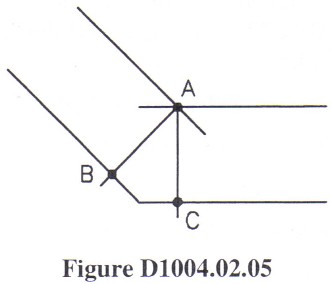

The GEOMETRIC CONSTRUCTION shown is used to draw an Arc tangent to a/an:,  | Acute angle. |
| In the GEOMETRIC CONSTRUCTION shown, point "B" is:, | The radius point. |
| In the GEOMETRIC CONSTRUCTION shown, point "A" is:, | A point of tangency. |

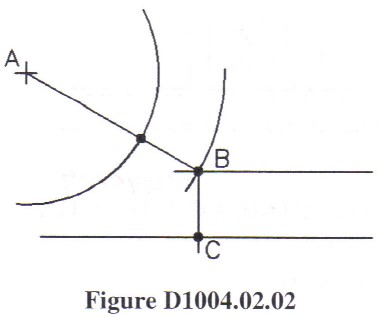

The GEOMETRIC CONSTRUCTION shown is used to draw a/an:,  | Arc tangent to a straight line and existing arc. |
| In the GEOMETRIC CONSTRUCTION shown, point "A" is:, | Point of tangency. |
| In the GEOMETRIC CONSTRUCTION shown, point "B" is a/an:, | Radius point. |

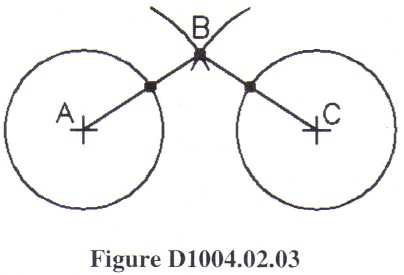

| The GEOMETRIC CONSTRUCTION shown is used to draw a/an:, | Arc tangent to two circles. |
| To FINISH the GEOMETRIC CONSTRUCTION shown:, | Use B as a center point and draw arc AC. |
If the construction circle shown has a 2" diameter, then the hexagon measures 2" across the:,  | Corners. |
| The GEOMETRIC CONSTRUCTION shows how to draw a hexagon across the:, | Corners. |
