| A | B |
|---|
| 143° | What is the obtuse angle being measured?,  |

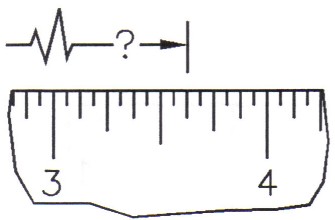

| 3 5/8" | What is the measurement shown on the rule?,  |

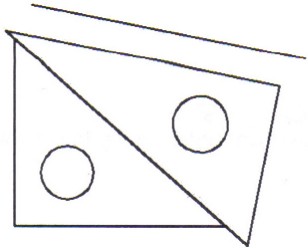

| Drawing a line parallel to the given line | What is the technique shown?,  |

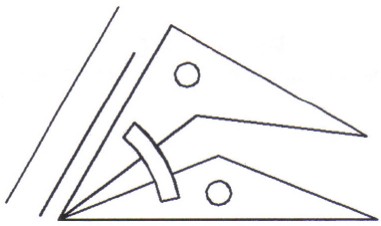

| Drawing parallel lines | What is the technique shown?,  |
| .375 | What is the decimal equivalent of 3/8" |
| 60° | What is the angle of the line illustrated?,  |

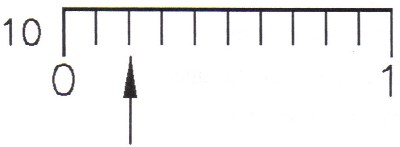

| .2 | What is the measurement indicated by the arrow?,  |

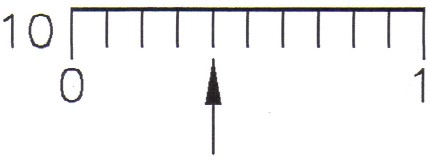

| .4 | What is the measurement indicated by the arrow?,  |

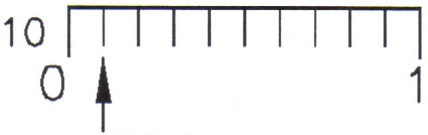

| .1 | What is the measurement indicated by the arrow?,  |

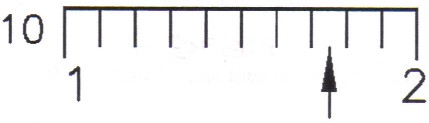

| 1.75 | What is the measurement indicated by the arrow?,  |

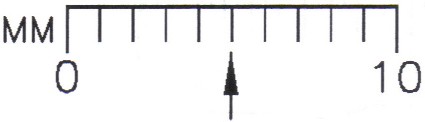

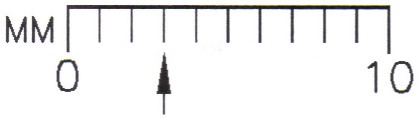

| 5 | What is the measurement indicated by the arrow?,  |
| 3 | What is the measurement indicated by the arrow?,  |

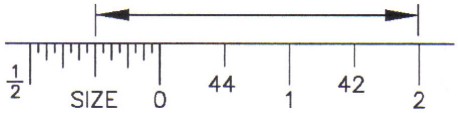

| 2 1/2" | What is the measurement on the MECHANICAL DRAFTER'S scale?,  |
| 17mm | What is the measurement indicated by the arrow?,  |

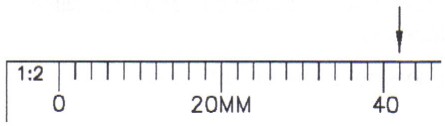

| 42 millimeters | What is the measurement illustrated?,  |
| 15 | What is the measurement indicated by the arrow?,  |
| Use the corners of the paper (or work space) to draw diagonals | What is the BEST method for centering a SYMMETRICAL, one-view drawing? |
| True | True or False: The visible (object) line is thicker than a Center line. |
| Lean the compass | What should be done when drawing circles with a compass? |
| SCALE 1:2 | When drawing an object one-half its true size, which scale would be indicated on your drawing? |
| 3/8 | What is the radius of a Ø3/4 circle? |
| 13/16 | What is the radius of a Ø 1 5/8 circle? |
| 1 1/4 | What is the diameter of a R5/8 circle? |
| 5/8 | What is the fractional equivalent of .625? |
| 3 | What is the diameter of a R1 1/2 circle? |
| 1/2 full size | Which drawing scale is equivalent to 1:2? |
| 1:4 | Which drawing scale would be BEST for a 24" wheel on an "A" size sheet? |
| 1:4 | Which drawing scale would be BEST for a 36" X 24" gasket on an "A" size sheet? |
| 4:1 | Which drawing scale would be BEST for a small paper clip on a "B" size sheet? |
| 4:1 | Which drawing scale would be BEST for a Ø1/4" washer on a "A" size sheet? |
| Title block | Where is information such as the drafter, date, and scale be located? |
| 15° | STANDARD TRIANGLES can be used to construct lines in multiples of: |
| Protractor | Which would NOT be used to draw parallel lines? (T-square, Drafting machine, Parallel edge, Protractor) |
| Arcs and circles | What should be darkend first on a pencil drawing? |
| .875 | What is the decimal equivalent of 7/8"? |
| .125 | What is the decimal equivalent of 1/8? |
| .375 | What is the decimal equivalent of 3/8? |
| .75 | What is the decimal equivalent of 3/4? |
| Symmetrical. | Shapes mirrored about the center line are: |

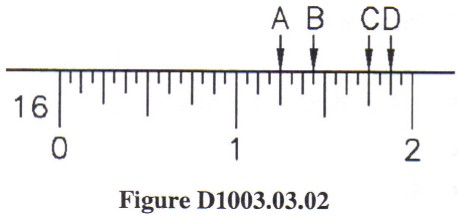

| A | Which measurement is 1 1/4"?,  |
| B | Which measurement is 1 7/16"?, |
| C | Which measurement is 1 3/4"?, |
| D | Which measurement is 1 7/8"?, |
| C | Identify the HIDDEN line.,  |
| D | Identify the CENTER LINE., |
| A | Identify the VISIBLE line., |
