| A | B |
|---|

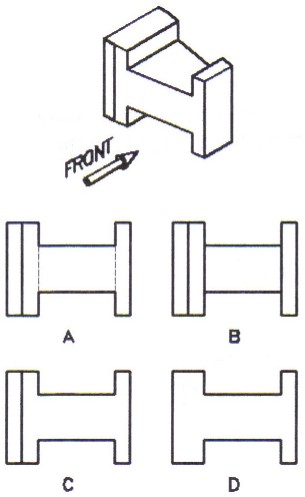

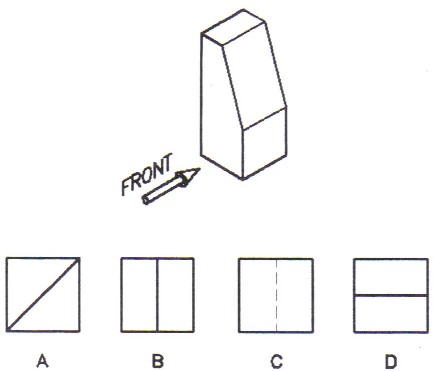

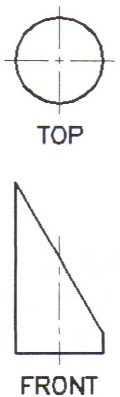

What is the correct FRONT view in figure shown?,  | D |
The object shown is composed of:,  | Normal and oblique surfaces. |
If a cylinder is cut as illustrated, the RIGHT SIDE view will contain a/an:,  | Ellipse |

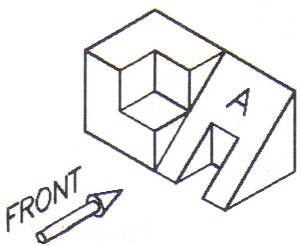

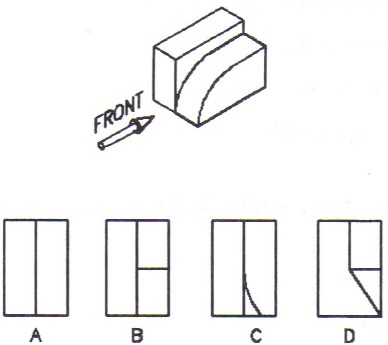

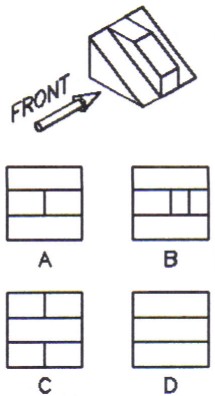

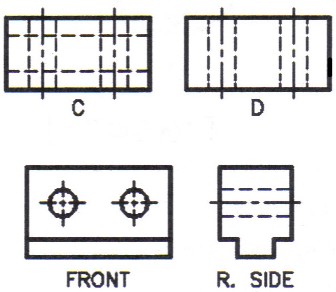

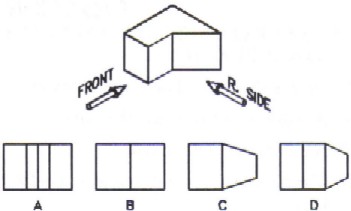

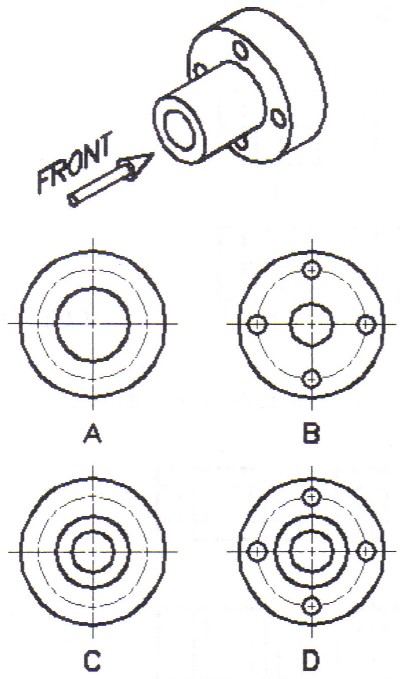

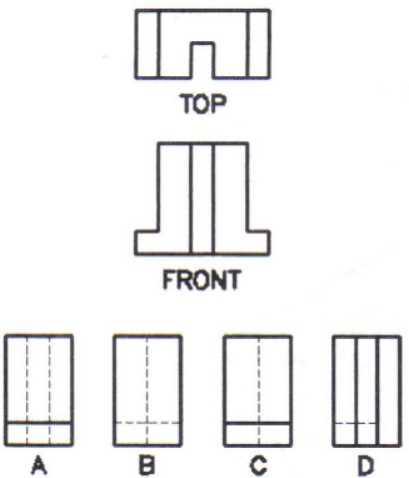

The edge view of surface "A" will appear TRUE LENGTH in the:,  | Right side view. |
Lines are missing in which view(s)?,  | Lines are missing in the front and right side views. |
What is the correct FRONT view shown?,  | C |
Which is the correct RIGHT SIDE view?,  | C |
Which is the correct TOP view?,  | C |
| When two surfaces intersect they form a: | Line. |
The edge view of surface "A" will appear TRUE LENGTH in the:,  | Right side view. |
What is the correct RIGHT SIDE view?,  | A |
| When a CURVED SURFACE is TANGENT to a PLANE SURFACE: | No line should be shown where they join. |
What is the correct TOP view?,  | D |
What is the correct TOP view?,  | A |
| When a surface ALWAYS appears as FORESHORTENED SURFACE (never as a line) on the six regular planes of projection it is classified as: | Oblique |
What is the correct FRONT view?,  | D |
Surface "A", will appear TRUE SIZE and TRUE SHAPE in:,  | None of the customary views. |
| In an orthographic drawing, a circular surface may NOT appear as a/an: | Parabola. |
What is the correct RIGHT SIDE view?,  | C |

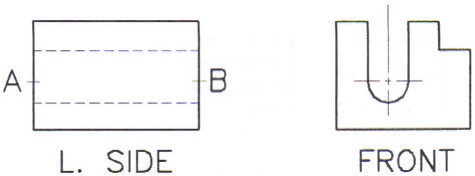

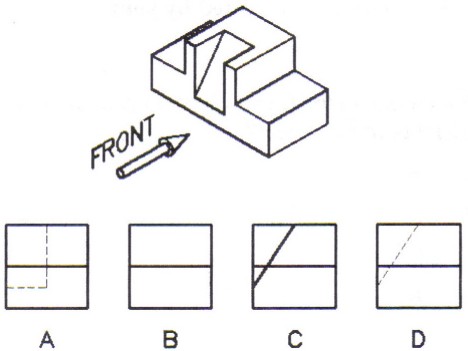

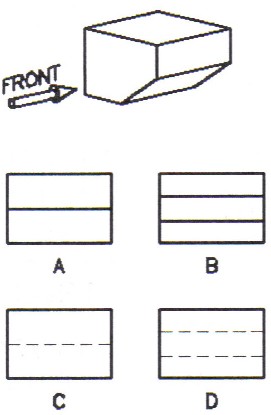

What type of line must be drawn between A & B to complete the view?,  | Center |
Which is the correct FRONT view?,  | B |
What is the correct TOP view?,  | B |
What is the correct RIGHT SIDE view?,  | D |
What is the correct TOP view?,  | A |
Which is the correct TOP view?,  | A |
What is the correct FRONT view?,  | A |
| A line at an angle of less than 90° to a plane of projection will appear as a: | Foreshortened line. |
