| When a surface slants away from a plane of projection, it appears as a: | Foreshortened surface. |
The slot shown is hidden in the:,  | Left side view. |
Which line is parallel to the DEPTH of the object?,  | EF |
| Which line is parallel to the HEIGHT of the object?, | CD |
How will surface ADEG appear in the RIGHT SIDE view?,  | As an edge |

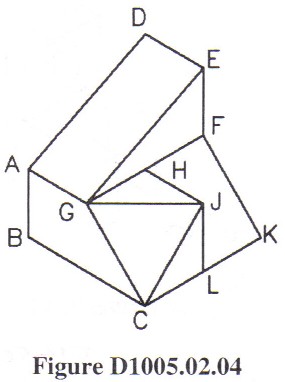

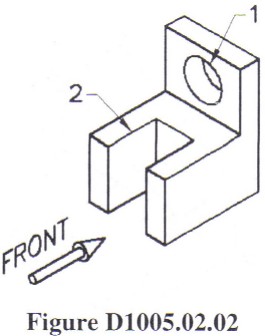

| What type of surface is ABCG?, | Frontal |
| What type of surface is ADEG?, | Inclined |
| What type of surface is EFG?, | Profile |
| What type of surface is GHJ?, | Horizontal |
| What type of surface is CJL?, | Profile |
| What type of surface is FHLK?, | Inclined |
| What type of surface is HJL?, | Frontal |
| What type of surface is CJG?, | Oblique |
| How will surface ADEG appear in the TOP view?, | Foreshortened |
| How will surface HJL appear in the BACK view?, | True size and shape |
| How will surface HJL appear in the RIGHT SIDE view?, | As an edge |
| The hole is visible in which view?, | Front view |
| The slot is visible in which view(s)?, | Bottom View and Top Vew |
| The hole is hidden in which view(s)?, | Left Side View and Right Side View |

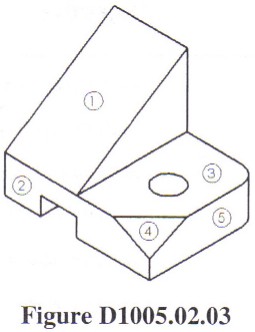

Which is the FRONTAL surface? 2, 3, 4, 5,  | 2 |
| Which is the PROFILE surface? 2, 3, 4, 5, | 5 |
