| A | B |
|---|
What is WRONG with the dimensioning shown?,  | One of the diameter dimensions is not in the correct view. |
Which is the BEST example of dimensioning the cylinder below?,  | A |
Dimensioning shown could be improved by:,  | Not having gaps where the center lines cross the visible lines. |

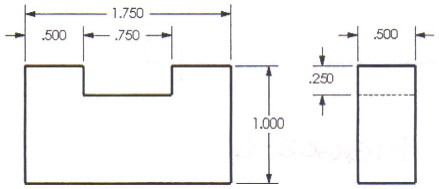

Which general rule for dimensioning is violated?,  | Avoid dimensioning to hidden features. |

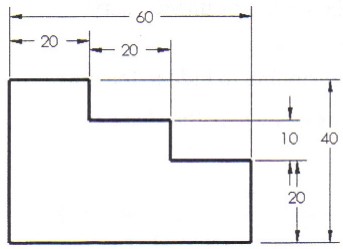

What is WRONG with the dimensions?,  | The shorter dimensions should be placed close to the object. |

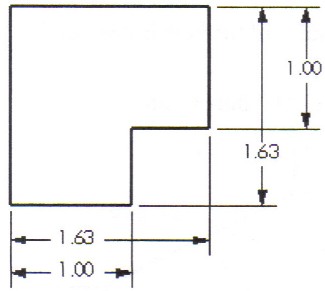

What is WRONG with the dimensioning?,  | The dimension lines are not aligned with one another. |

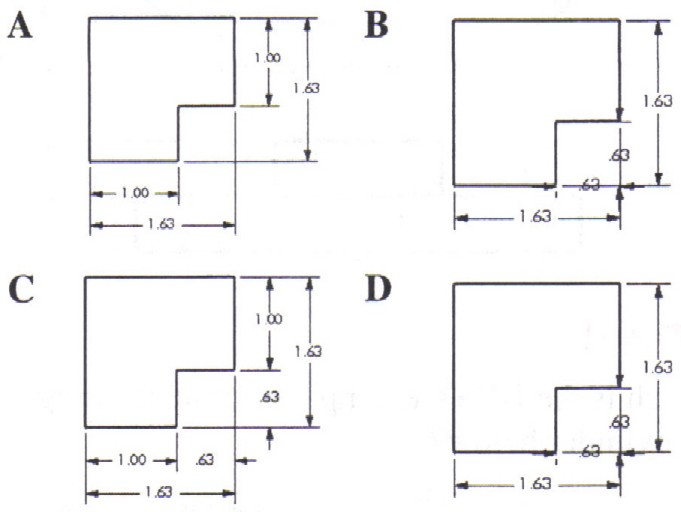

Which is the BEST example of dimensioning the object?,  | B |
Which is the BEST example of dimensioning the object?,  | A |

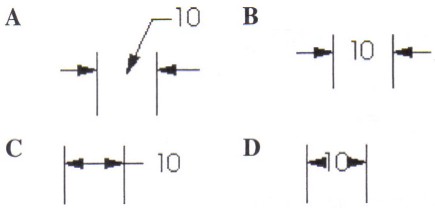

Which is the BEST placement of the dimension?,  | B |

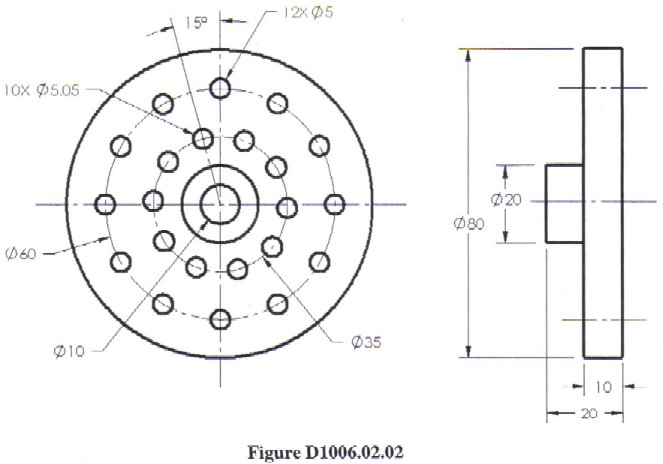

What is the size and quantity of the smallest sized hole(s)?,  | Ø5, 12 |
| What is the size of the largest sized hole?, | Ø10 |

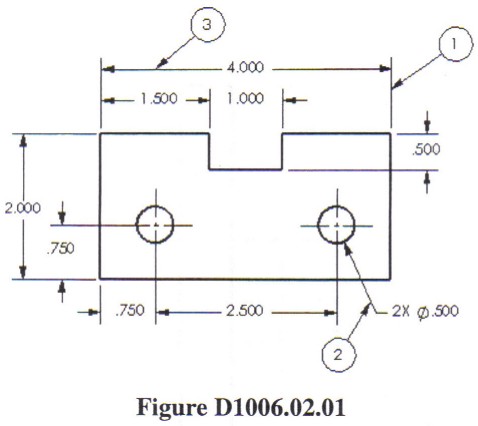

What is the width of the slot shown?,  | 1.000" |
| What is the diameter of the holes?, | .500 |
