| A | B |
|---|
The BEST way to create the 3D object shown is to:,  | Union a filleted box and a cylinderthen subtract (difference) a cylinder. |
The BEST way to form the 3D object shown is to:,  | Draw a profile and revolve 180° |
The BEST way to create the 3D shown is to:,  | Draw a profile and rotate. |
The BEST way to form the 3D object shown is to:,  | Create the profile and extrude. |
The BEST way to form the 3D object shown is to create:,  | The profile and extrude. |
The BEST way to form the 3D object shown is to:,  | Create the profile and extrude. |
The shape shown is a:,  | Sphere. |
The shape shown is a:,  | Torus. |

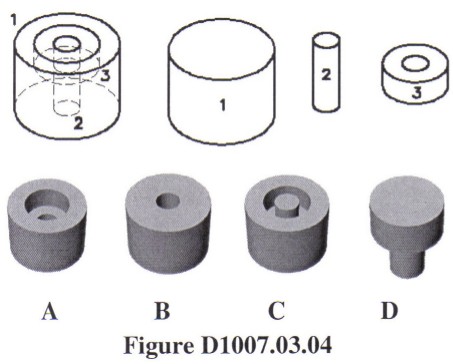

When using Boolean operations for the 3D models, the result of 1-3 would look like:,  | C |

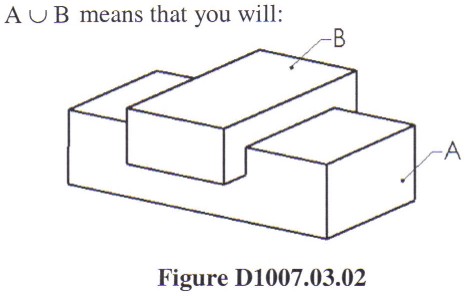

When using Boolean operation for the 3D solids,  | Join the two boxes into a single unit as shown. |

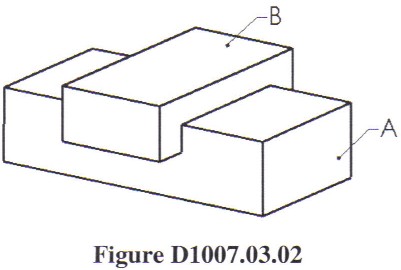

When using Boolean operations for the 3D solids, A-B means that you will:,  | Subtract the top box from the bottom box, leaving the bottom in a U-shape. |

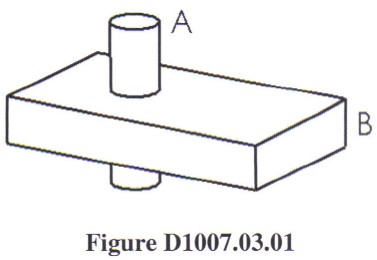

When using the Boolean operations for the 3D solids, A-B means that you will:,  | Subtract the box from the cylinder, leaving two small cylinders. |
When using Boolean operations for the 3D solids,,  | Leave a small cylinder that exists from the intersection of the two objects. |

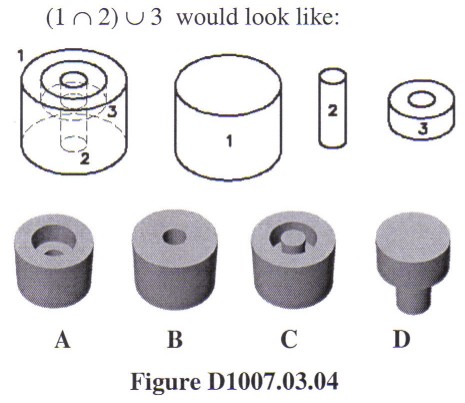

When using Boolean operations for the 3D models, the result of,  | D |

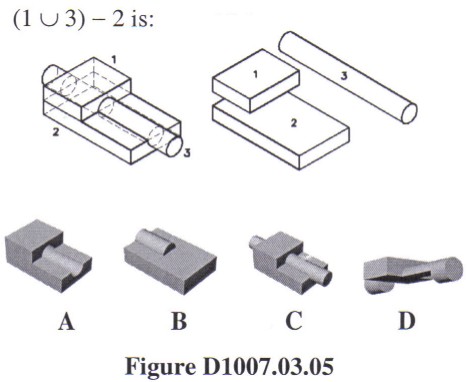

When using Boolean operations for the 3D models, the result of,  | D |

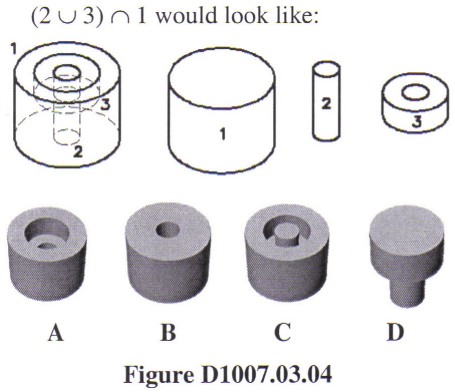

When using Boolean operations for the 3D models, the result of,  | D |
When using Boolean operations for the 3D models, the result of,  | D |

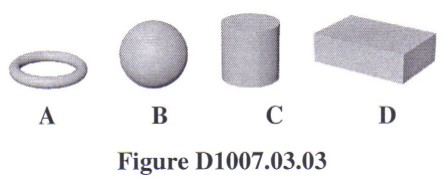

The SPHERE is shown at:,  | B |
| The PRISM is shown at:, | D |
| To EXTRUDE a profile: | Take a 2D shape and give it thickness. |
