| A | B |
|---|

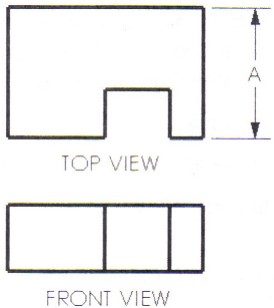

Dimension "A" in the TOP VIEW is the:,  | Front to back. |

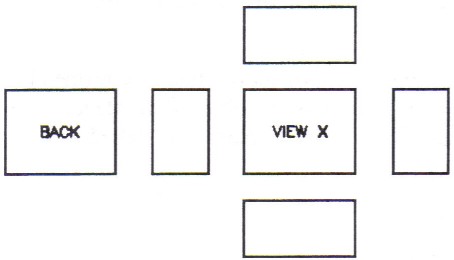

According to its position, view X in the illustration is the:,  | Front. |
What is the MINIMUM number of views necessary to describe the three dimensions of the object:,  | Two views |
Where is the HIDDEN LINE drawn INCORRECTLY in the figure?,  | B |

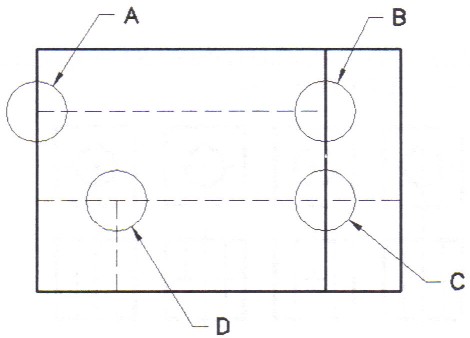

Which is the BEST example of drawing CENTER lines?,  | D |
Which is a CENTER LINE?,  | B |

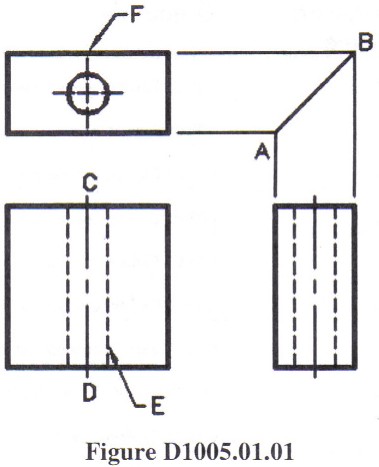

Line AB in figure is a/an:,  | Miter line. |
| Line CD in figure is a/an:, | Center Line. |
| Line E in figure is a/an:, | Hidden line. |
| Line F in figure is a/an:, | Visible (Object) line. |
| A MITER LINE is drawn at an angle of: | 45° |
| According to the correct arrangement of views, the BACK VIEW would be placed adjacent to the: | Left side view. |
| The face of the object that has the most descriptive feature(s) should be the: | Front. |
| CENTER lines should be: | Thin. |
| HIDDEN lines should be: | Thin. |
| The TOP VIEW is normally placed above the: | Front. |
| The number of ORTHOGRAPHIC views provided by the planes of a box is: | 6. |
| Another term for ORTHOGRAPHIC DRAWING is: | Multiview drawing. |
