| A | B |
|---|
3D drawings of objects where lines converge from 2 vanishing points,  | 2 Point Perspective |
Cavalier Full depth oblique drawing,  | Cavalier Oblique Drawing |
Numerical expressions including equations and measurements communicate information,  | Mathematical Models |

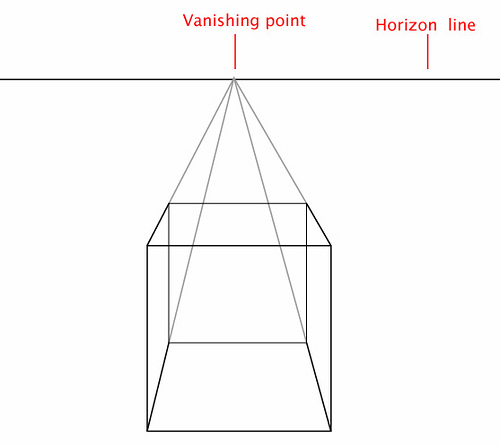

One point perspective drawing,  | 3D drawing of object where lines converge from a single point |

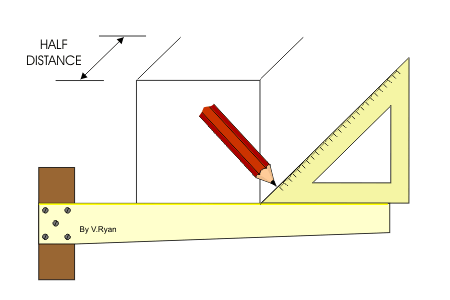

1/2 depth 3D drawing with width represented as a horizontal line,  | Cabinet Oblique |
Technical sketching including multiple views of same object,  | Orthographic drawing |

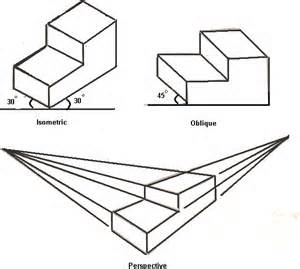

Technical Sketching conceptual models,  | Conceptual Modes of Isometric, Oblique, Perspective |

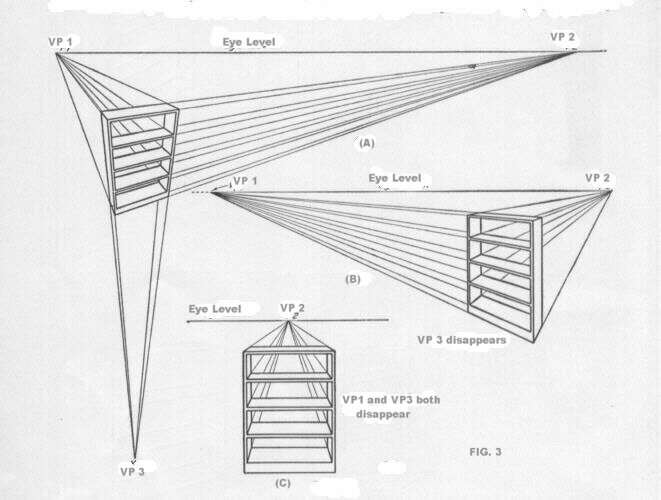

1,2 & 3 point perspective drawings,  | 3D drawings of objects where lines converge on one or more ponts that are intended to be close to the human eye in observation |
| mock-up | simulates the look of an object but is not functional |
| prototype | working model to test a design concept through observation and adjustment |
