Metals I Obj. 11.01, 12.01
Metals I Obj. 11.01, 12.01
|
| A | B |
|---|

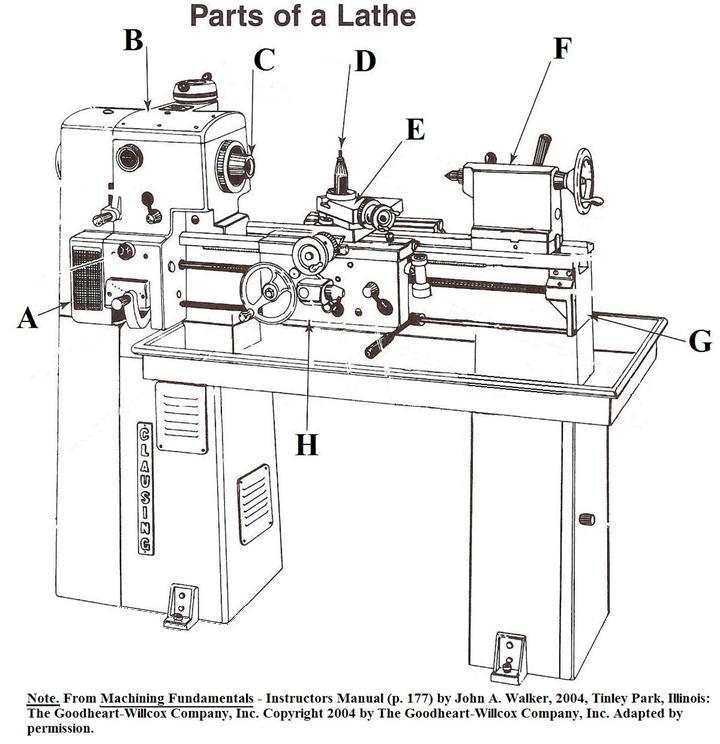

What lathe part is indicated by the number D in the illustration?,  | Tool post, |
| What lathe part is indicated by the number E in the illustration?, | Compound rest, |
| What lathe part is indicated by the number H in the illustration?, | Carriage apron, |
| What is the maximum length of a part that can be turned on a lathe between the headstock spindle and tailstock spindle? | Distance between centers |
| Lathe sizes are determined by the? | Swing and length of the bed |

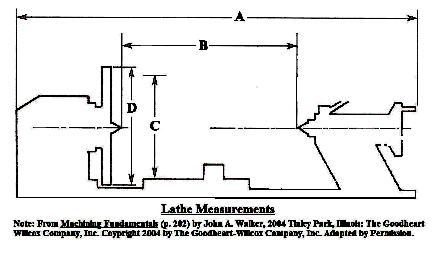

What lathe measurement is indicated by D?,  | Swing over bed, |
| What lathe measurement is indicated by C?, | Swing over cross-slide, |

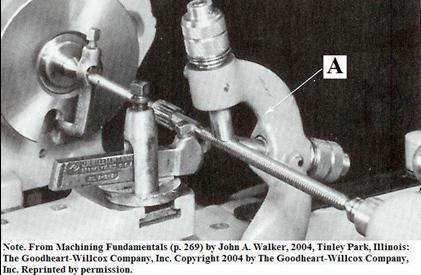

What lathe accessory is shown at A?,  | Follower rest, |
What is the lathe accessory shown?,  | 3 Jaw universal, |

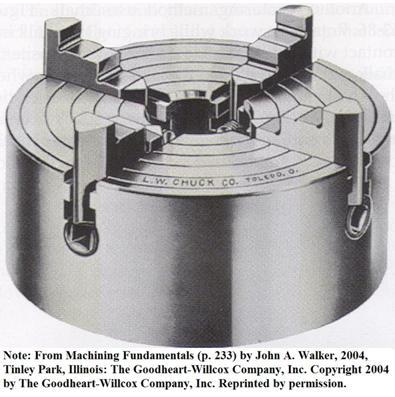

What is the lathe accessory shown?,  | 4 Jaw independent, |

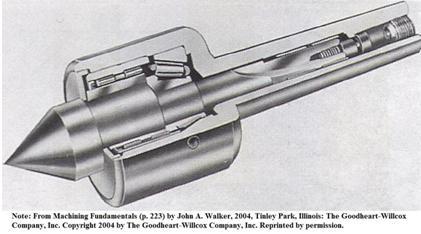

What is the lathe accessory shown?,  | Tailstock center, |
|
|
|
|
|
