Metals I Obj. 6.01
Metals I Obj. 6.01
|
| A | B |
|---|
| Which head on the combination set comes with a level? | Square |
| What is this tool? | Combination square,  |

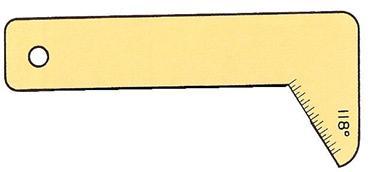

| Which tool is pictured? | Drill point gage,  |
| What are three different types of heads available to be used on a combination set? | Protractor, square, and center |
| What is this tool? | Outside caliper,  |
| Which operation must NEVER be preformed on a surface plate? | Applying layout dye |
| What MUST the height gauge be used with? | Surface plate |
| Which tool is this? | Right angle plate,  |
| Which tool is this? | Hardened steel square,  |
| What is the process of locating and marking lines to provide machining reference points? | Layout |
| Which punch has a point shaped like A? | Center,  |
| Which punch has a point shaped like B? | Prick,  |
| Which hand tool is pictured? | Prick punch,  |

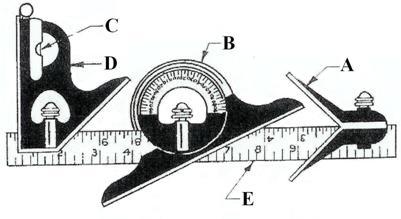

| Which component is D? | Square head, |
| Which component is A? | Center head, |
| Which hand tool is pictured? | Center punch,  |
| Which layout tool is shown? | V-block,  |
| What head of the combination square is used to layout angular lines from 0° - 180°? | Protractor |
| What tool is used to hold round stock when it is being laid out or machined? | V-block |
| Why is layout dye applied to the surface of the part being laid out? | To make layout lines more visible |
|
|
|
|
|
|
