Asociación de resistencias

Retroalimentación

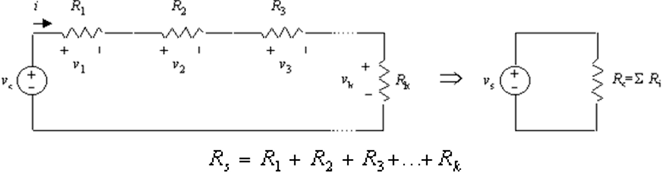

RT = 80 Ω + 120 Ω + 12 Ω = 212 Ω

1. Corriente total.

IT = VT / RT = 60 V / 212 Ω = 0.28302 A

2. Voltaje en cada resistencia.

V1 = IT × R1 = (0.28302 A) × (80 Ω) = 22.64 V

V2 = IT × R2 = (0.28302 A) × (120 Ω) = 33.96 V

V3 = IT × R3 = (0.28302 A) × (12 Ω) = 3.396 V
